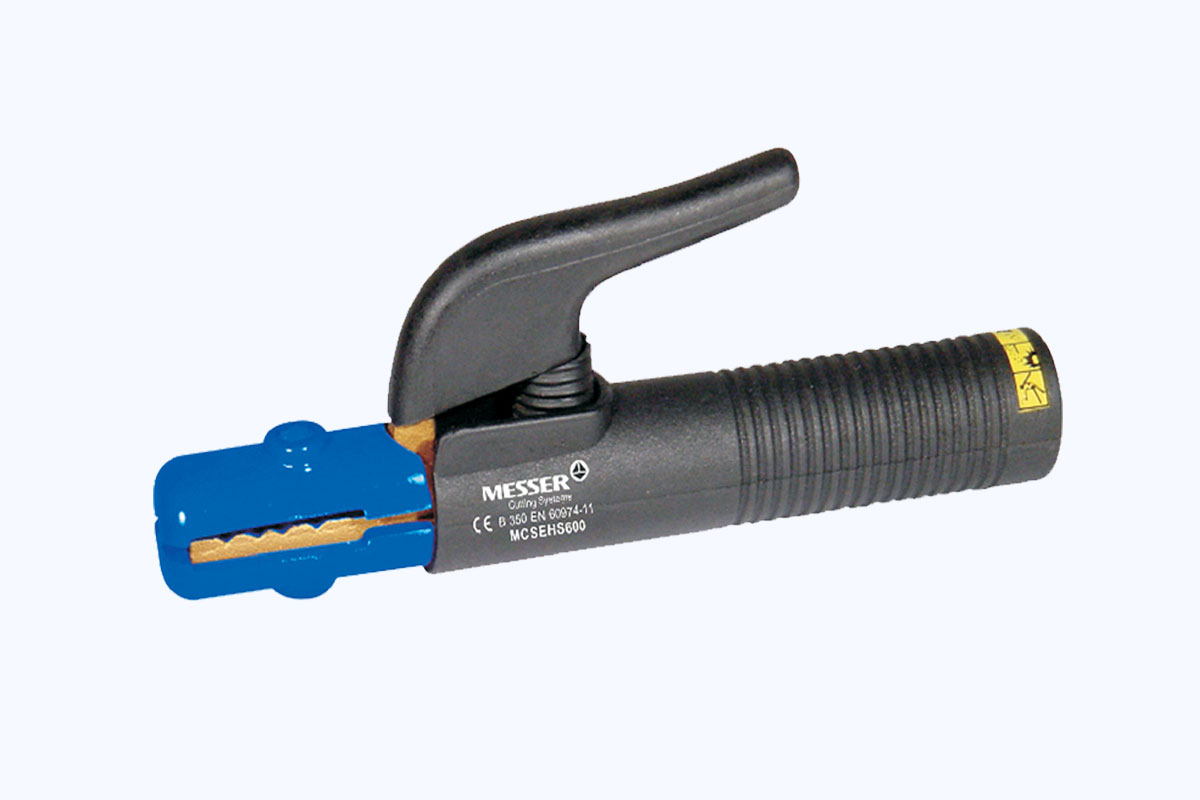

ELECTRODE HOLDER

SPECIAL SERIES

KEY FEATURES:

Glass filled polyamide unbreakable handle.
Fully brass body.
Multiple angle electrode holding jaw design
Long lasting replaceable fibre glass tip.
Fully insulated metal lever.
Spring cover for enhanced safety.
Cable hole connection.

Enquire Now Watch Video

Electrode Holder	Product Code	Current at DC		Electrode Size
Electrode Holder	Product Code	35%	60%	Electrode Size
Special 400	80821102N	400 Amp	300 Amp	5.0mm
Special 600	80821103N	600 Amp	450 Amp	6.3mm

STANDARD SERIES

KEY FEATURES:

Strong heat resistant DMC handle.
Multiple angle electrode holding jaw design.
Long lasting replaceable fibre glass tip.
Fully insulated metal lever.
Spring cover for enhanced safety.
Easy cable connection without lug.
Suitable for construction industry.

Enquire Now Watch Video

Electrode Holder	Product Code	Current at DC		Electrode Size
		35%	60%
Standard 600	80821103N	500 Amp	400 Amp	6.3mm

SAFE SERIES

KEY FEATURES:

Fully insulated new generation safe welding electrode holder.
Electric shock protection, passed with 12mm metal sphere test.
Strong heat resistance DMC handle.
Straight 180° and multiple electrode jaw holding.

Enquire Now Watch Video

Electrode Holder	Product Code	Current at DC		Electrode Size
Electrode Holder	Product Code	35%	60%	Electrode Size
Safe 400	80830617	400 Amp	300 Amp	5.0mm
Safe 600	80830616	600 Amp	400 Amp	6.3mm
